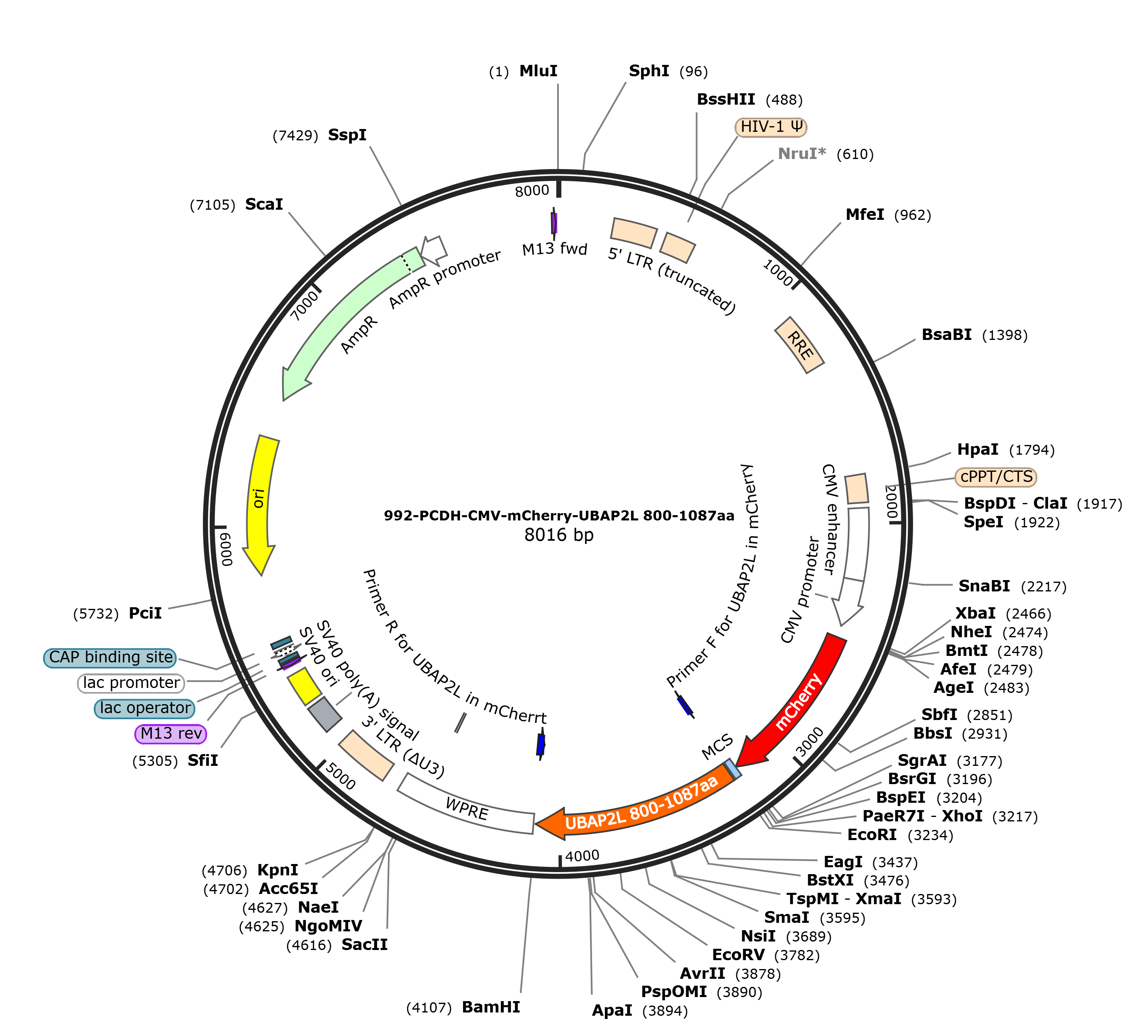

pCDH-CMV-mCherry-UBAP2L 800-1087aa

LOCUS       pCDH-CMV-mCherry-UBAP2L 800-1087aa               8016 bp DNA     circular SYN 10-DEC-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8016)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8016
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     misc_feature    3219..3239
                     /label=Primer F for UBAP2L in mCherry
     CDS             3240..4103
                     /codon_start=1
                     /label=UBAP2L 800-1087aa
                     /translation="PNPYIMAPGLLHAYPPQVYGYDDLQMLQTRFPLDYYSIPFPTPTT
                     PLTGRDGSLASNPYSGDLTKFGRGDASSPAPATTLAQPQQNQTQTHHTTQQTFLNPALP
                     PGYSYTSLPYYTGVPGLPSTFQYGPAVFPVAPTSSKQHGVNVSVNASATPFQQPSGYGS
                     HGYNTGVSVTSSNTGVPDISGSVYSKTQQSFEKQGFHSGTPAASFNLPSALGSGGPINP
                     ATAAAYPPAPFMHILTPHQQPHSQILHHHLQQDGQTGSGQRSQTSSIPQKPQTNKSAYN
                     SYSWGAN"
     primer_bind     complement(3467..3484)
                     /label=YZY-P764
     misc_feature    complement(4086..4124)
                     /label=Primer R for UBAP2L in mCherrt
     misc_feature    4113..4700
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4584..4595)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4773..5006
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5078..5199
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5218..5353
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5391..5407)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5415..5431
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5439..5469)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5484..5505
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5793..6381)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6552..7412)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7413..7517)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     7991..8007
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattcc
     3241 ctaatccgta tattatggct ccagggctgt tacatgccta cccgccacaa gtatatggtt
     3301 atgatgactt gcagatgctt cagacaagat ttccattgga ttactacagc atcccatttc
     3361 ccacacccac tactccgctg actgggaggg atggtagcct ggccagcaac ccttattctg
     3421 gtgacctcac aaagttcggc cgtggggatg cctcctcccc agccccggcc acaaccttgg
     3481 cccaacccca acagaaccag acgcagactc accataccac gcagcagaca ttcctgaacc
     3541 cggcgctgcc tcctggctac agttacacca gcctgccata ctatacaggg gtcccgggcc
     3601 tccccagcac cttccagtat gggcctgctg tgttccctgt ggctcctacc tcttccaagc
     3661 agcatggtgt gaatgtcagt gtgaatgcat cggccacccc tttccaacag ccgagtggat
     3721 atgggtctca tggatacaac actggtgttt cagtcacctc cagtaacacg ggcgtgccag
     3781 atatctcggg ttctgtgtac tccaaaaccc agcagtcctt tgagaaacaa ggttttcatt
     3841 ccggtactcc tgctgcttcc ttcaacttgc cttcagccct aggaagtggg ggccccatca
     3901 atccggccac agctgctgcc tacccacctg ccccctttat gcacattctg accccccatc
     3961 agcagccgca ttctcagatc cttcaccatc acctgcagca ggatggccag acgggcagcg
     4021 ggcaacgtag ccagaccagc tccatcccgc agaagcccca gaccaacaag tctgcctaca
     4081 acagctacag ctggggggcc aactagggat ccaatcaacc tctggattac aaaatttgtg
     4141 aaagattgac tggtattctt aactatgttg ctccttttac gctatgtgga tacgctgctt
     4201 taatgccttt gtatcatgct attgcttccc gtatggcttt cattttctcc tccttgtata
     4261 aatcctggtt gctgtctctt tatgaggagt tgtggcccgt tgtcaggcaa cgtggcgtgg
     4321 tgtgcactgt gtttgctgac gcaaccccca ctggttgggg cattgccacc acctgtcagc
     4381 tcctttccgg gactttcgct ttccccctcc ctattgccac ggcggaactc atcgccgcct
     4441 gccttgcccg ctgctggaca ggggctcggc tgttgggcac tgacaattcc gtggtgttgt
     4501 cggggaagct gacgtccttt ccatggctgc tcgcctgtgt tgccacctgg attctgcgcg
     4561 ggacgtcctt ctgctacgtc ccttcggccc tcaatccagc ggaccttcct tcccgcggcc
     4621 tgctgccggc tctgcggcct cttccgcgtc tccgccttcg ccctcagacg agtcggatct
     4681 ccctttggcc gcctccccgc cggtaccttt aagaccaatg acttacaagg cagctgtaga
     4741 tcttagccac tttttaaaag aaaagggggg actggaaggg ctaattcact cccaacgaaa
     4801 ataagatctg ctttttgctt gtactgggtc tctctggtta gaccagatct gagcctggga
     4861 gctctctggc taactaggga acccactgct taagcctcaa taaagcttgc cttgagtgct
     4921 tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac tagagatccc tcagaccctt
     4981 ttagtcagtg tggaaaatct ctagcagtag tagttcatgt catcttatta ttcagtattt
     5041 ataacttgca aagaaatgaa tatcagagag tgagaggaac ttgtttattg cagcttataa
     5101 tggttacaaa taaagcaata gcatcacaaa tttcacaaat aaagcatttt tttcactgca
     5161 ttctagttgt ggtttgtcca aactcatcaa tgtatcttat catgtctggc tctagctatc
     5221 ccgcccctaa ctccgcccag ttccgcccat tctccgcccc atggctgact aatttttttt
     5281 atttatgcag aggccgaggc cgcctcggcc tctgagctat tccagaagta gtgaggaggc
     5341 ttttttggag gcctagactt ttgcagagac ggcccaaatt cgtaatcatg gtcatagctg
     5401 tttcctgtgt gaaattgtta tccgctcaca attccacaca acatacgagc cggaagcata
     5461 aagtgtaaag cctggggtgc ctaatgagtg agctaactca cattaattgc gttgcgctca
     5521 ctgcccgctt tccagtcggg aaacctgtcg tgccagctgc attaatgaat cggccaacgc
     5581 gcggggagag gcggtttgcg tattgggcgc tcttccgctt cctcgctcac tgactcgctg
     5641 cgctcggtcg ttcggctgcg gcgagcggta tcagctcact caaaggcggt aatacggtta
     5701 tccacagaat caggggataa cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc
     5761 aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc ccctgacgag
     5821 catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact ataaagatac
     5881 caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct gccgcttacc
     5941 ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag ctcacgctgt
     6001 aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc
     6061 gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa cccggtaaga
     6121 cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc gaggtatgta
     6181 ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag aaggacagta
     6241 tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg tagctcttga
     6301 tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca gcagattacg
     6361 cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc tgacgctcag
     6421 tggaacgaaa actcacgtta agggattttg gtcatgagat tatcaaaaag gatcttcacc
     6481 tagatccttt taaattaaaa atgaagtttt aaatcaatct aaagtatata tgagtaaact
     6541 tggtctgaca gttaccaatg cttaatcagt gaggcaccta tctcagcgat ctgtctattt
     6601 cgttcatcca tagttgcctg actccccgtc gtgtagataa ctacgatacg ggagggctta
     6661 ccatctggcc ccagtgctgc aatgataccg cgagacccac gctcaccggc tccagattta
     6721 tcagcaataa accagccagc cggaagggcc gagcgcagaa gtggtcctgc aactttatcc
     6781 gcctccatcc agtctattaa ttgttgccgg gaagctagag taagtagttc gccagttaat
     6841 agtttgcgca acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt
     6901 atggcttcat tcagctccgg ttcccaacga tcaaggcgag ttacatgatc ccccatgttg
     6961 tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg tcagaagtaa gttggccgca
     7021 gtgttatcac tcatggttat ggcagcactg cataattctc ttactgtcat gccatccgta
     7081 agatgctttt ctgtgactgg tgagtactca accaagtcat tctgagaata gtgtatgcgg
     7141 cgaccgagtt gctcttgccc ggcgtcaata cgggataata ccgcgccaca tagcagaact
     7201 ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa aactctcaag gatcttaccg
     7261 ctgttgagat ccagttcgat gtaacccact cgtgcaccca actgatcttc agcatctttt
     7321 actttcacca gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga
     7381 ataagggcga cacggaaatg ttgaatactc atactcttcc tttttcaata ttattgaagc
     7441 atttatcagg gttattgtct catgagcgga tacatatttg aatgtattta gaaaaataaa
     7501 caaatagggg ttccgcgcac atttccccga aaagtgccac ctgacgtcta agaaaccatt
     7561 attatcatga cattaaccta taaaaatagg cgtatcacga ggccctttcg tctcgcgcgt
     7621 ttcggtgatg acggtgaaaa cctctgacac atgcagctcc cggagacggt cacagcttgt
     7681 ctgtaagcgg atgccgggag cagacaagcc cgtcagggcg cgtcagcggg tgttggcggg
     7741 tgtcggggct ggcttaacta tgcggcatca gagcagattg tactgagagt gcaccatatg
     7801 cggtgtgaaa taccgcacag atgcgtaagg agaaaatacc gcatcaggcg ccattcgcca
     7861 ttcaggctgc gcaactgttg ggaagggcga tcggtgcggg cctcttcgct attacgccag
     7921 ctggcgaaag ggggatgtgc tgcaaggcga ttaagttggg taacgccagg gttttcccag
     7981 tcacgacgtt gtaaaacgac ggccagtgcc aagctg
//
